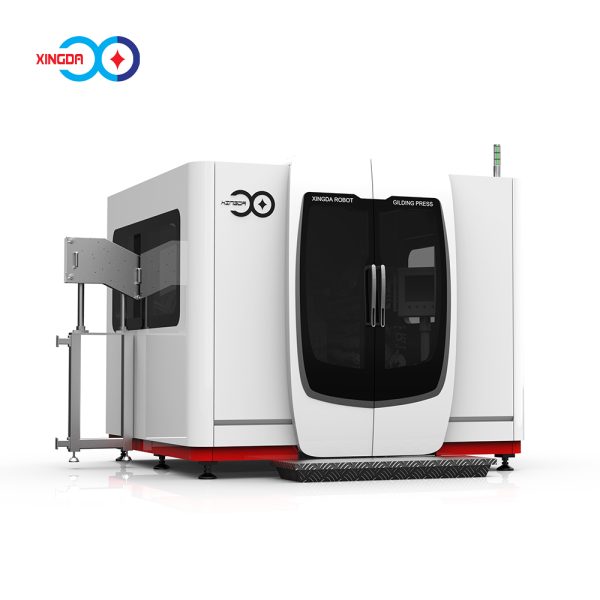

High-speed embossing & hot-stamping machine

High-speed embossing & hot-stamping machine

Model No：XD-HOSTCON-II
productivity：140 个 / 分钟
power：40 kW
Power of driving unit：34 kW
drive of main machine：3.33 kW
application diameter：Φ20 ～ Φ50 mm
application height：15 ～ 80 mm
size of the machine： 6.5×2.1×3.5m3
weight：4.5 T

Share to:

FEATURE

1.signal control assembly
2.14-sector or 28-sector indexing rotary plate
3.Full servo motion control
4.Suitable for Aluminum bottle caps

CONFIGURATION

1.Servo system adopts Dr. Rexroth, Beverly, Omron
2.servo indexing system adopts Kollmorgen
3.Flame treatment adopts British AEROGEN
4.Vacuum pumps adopt Japanese Orion

The equipment has three main advantages:

1. High efficiency. The production efficiency of domestic hot-stamping machine is less than 60 per minute. But the equipment can achieve 90 per minute of color register and a speed of 180 per minute for non-registering.
2. High positioning accuracy. Servo positioning is adopted with repetitive positioning accuracy of 0.1 mm.
3. Precision bulge. Servo extrusion is adopted to convex the equipment without any noise. The digital precise control of the convex height has greatly improved the product quality
